Spring-Loaded Guides SSG Type 28

Designation: SSG 7005 – Type and variant – Dk – H – Spring Cage No – Stop Lug
SSG 7100 – Type – Material – Quantity

Example: SSG 7005 – Type 28AC Dk 327 H=1250 NR 30 SSG 7100 A 1.4404 4 pcs

Note: If H is not specified, 2 pcs of two-meter threaded rods are delivered
Spring cage is calculated using table SSG7050
SSG 7100 must be welded to the pipe—quality is important

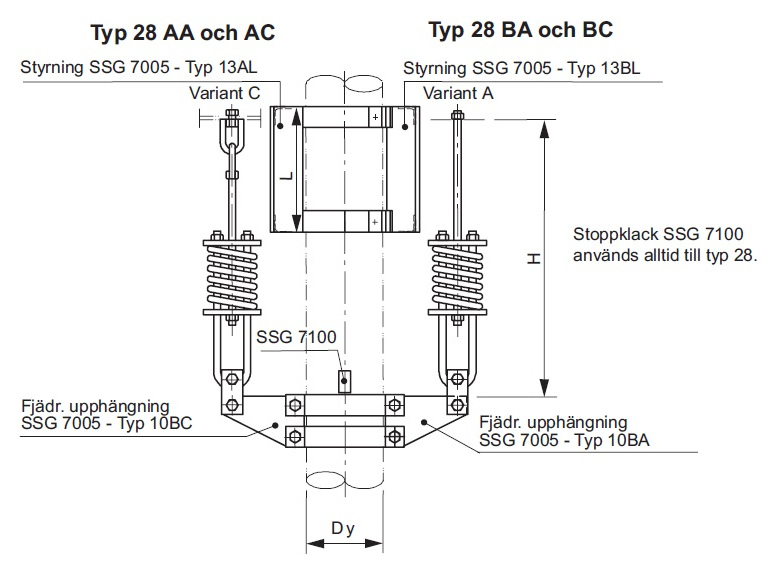

28AA & AC with guide 13AL for uninsulated pipes or protective insulation max 80 mm
28BA & BC with guide 13BL for insulated pipes

Spring size must always be specified when ordering.
